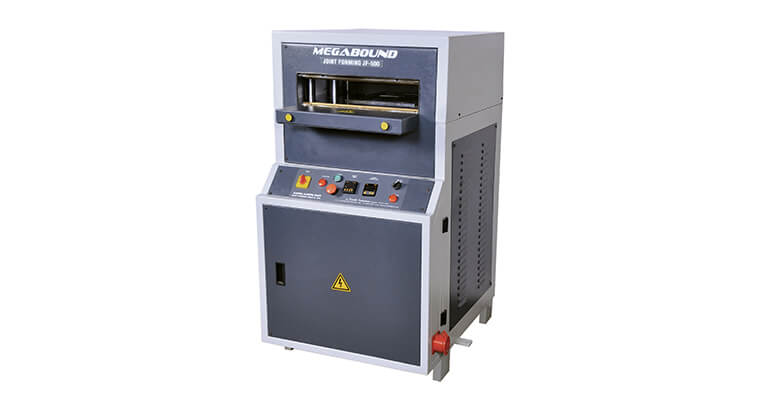

JOINT FORMINGJF-500
single
* The books are pressed immediately after casing-in and the joint is burnt-in at the same time. Pressure and temperature of the joint bars can be adapted to the binding material. Therefore the joint is formed extremely well.
* Receives a perfect and permanent shape.
* Hydraulic book press of 3 ton for even pressing of book.
* Adjustable depth of joint formation.
* Heated formers for perfect joint formation.
* Interchangeable guides for various applications

Technical Data:
  • Book thickness
    : 8mm - 100mm
  • Book size
    : 350mm x 500mm
  • Power
    : 3.5HP, 3 Phase, 415 Volts
  • Dimensions
    : L900 mm x W820mm x H400mm
  • Weight
    : 600Kgs.
  • Hydraulic pressure
    : 3000Kgs.
